Tech specs
Brand
Palo Alto Networks
Product Line
Palo
Model

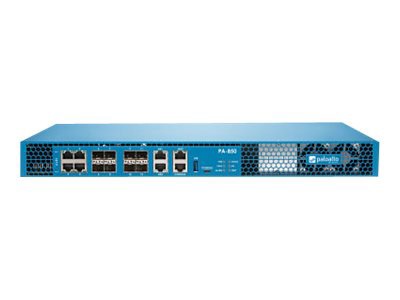

PA-850
Manufacturer
Palo Alto Networks
Hard Drive Capacity
240 GB
Port Expansion Hard Drive Type
SSD
Installed Quantity
1
Compliant Standards
IEEE 802.1Q, IEEE 802.3ad (LACP)
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Firewall protection, High Availability, IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, LDAP support, NAT support, VLAN support
Form Factor
Rack-mountable
Network Standard
PPPoE
Product Type
Security appliance
Remote Management
SSH
Routing Protocol
BGP, Bidirectional Forwarding Detection (BFD), IGMP, IGMPv2, IGMPv3, OSPFv2, OSPFv3, PIM-SM, PIM-SSM, RIP, Static IPv4 routing
Interface Provided
1 x console, 1 x console - RJ-45, 1 x USB, 3 x 1000Base-T (management) - RJ-45, 4 x 1000Base-T - RJ-45, 8 x Ethernet 1000 - SFP (mini-GBIC)
Frequency
50/60 hertz
Power Consumption Operational
75 watt
Power Provided
500 watt
Power Supplies Installed
2
Power Supplies Supported
2
Redundant Power Supply
Yes
Encryption
128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA, 384-bit SHA-2, 512-bit SHA-2, IKE, IKEv2, MD5, SHA-1, SSL, Triple DES
Max Operating Temperature
40 degree Celsius
Min Operating Temperature
0 degree Celsius
Capacity
IPSec VPN tunnels: 1000, Maximum number of policies: 1500, Maximum number of sessions: 192000, New sessions per second: 9500, Security zones: 40, Virtual routers: 5, VLAN tags per device: 4094, VLAN tags per interface: 4094
Device Type
Internal power supply
Packaged Quantity
1
Service Activation
No
Network Device
Firewall throughput: 1.9 Gbps, Threat prevention throughput: 780 Mbps, VPN throughput (IPSec): 500 Mbps
Height
4.45 centimetre
Height (Rack Units)
1
Weight
6.12 kilogram
Width
43.5 centimetre
Depth
36.8 centimetre
Compliant Standards
CB, cCSAus, FCC Class A certified, VCCI Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
