Tech specs
Brand
Zebra
Product Line
Zebra
Model

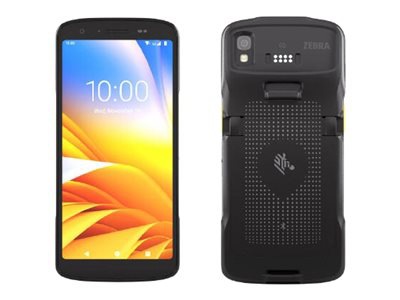

TC22
Manufacturer
Zebra Technologies
Clock Speed
2.1 GHZ
Cores
6-core
Processor Brand
Qualcomm
Processor Number
5430
Flash Memory Cards Supported
microSD
Flash Memory Installed
64 GB
Max Flash Memory Cards Supported
2 TB
Memory Card Slot
microSD slot
RAM Installed
6 GB
Cellular Data Connectivity Technology
4G LTE, 5G, UMTS
Security Protocols & Features
AES, EAP-AKA, EAP-GTC, EAP-PWD, EAP-TLS, EAP-TTLS, GCMP, IPv4 support, IPv6 support, LEAP, MS-CHAP, MS-CHAPv2, PAP, PEAPv0, PEAPv1, TKIP, WEP, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-OWE, WPA3-SAE, WPA-Enterprise
Wireless Connectivity
Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, NFC
Wireless LAN
802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax, Bluetooth 5.2, NFC
Mobile Broadband Access
5G
Expansion Slots
1 x microSD
Interface Provided
1 x 2 pin connector, 1 x USB-C 3.1
Barcode Reader
Yes
Features
450 NIT indoor display, Corning Gorilla glass
Multi-touch Screen
Yes
Native Resolution
1080 x 2160
Output Type
Color
Screen Size
6.5 inch
Screen Size (metric)
16.5 centimetre
Touchscreen
No
Display Backlight Technology
LED backlight
Audio Input Type
Microphone
Output Type
Two speakers
Cameras (compact list)
Rear camera
Rear Camera
Yes
Rear Camera Resolution
16 Megapixel
Sensor Resolution
5 Megapixel
Battery Capacity
3800 mAH
Battery Chemistry
Lithium ion
Operating System Edition
Android
Input Device Type
Touchscreen
Max Operating Temperature
50 degree Celsius
Max Storage Temperature
70 degree Celsius
Min Operating Temperature
-10 degree Celsius
Min Storage Temperature
-40 degree Celsius
Operating Humidity
5 - 95% (non-condensing)
RFID Compliant Standards
Felica, ISO 14443A, ISO 14443B, ISO 15693
Rugged
Yes
Scan Element Type
2D imager
Sensor Type
3-axis accelerometer, Ambient light sensor, Magnetometer, Proximity sensor
Vibration Alert
Yes
Country
North America
Features
2x2 MiMo function, Capacitive touch screen, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), ESD protection up to 8 kV (indirect), Interactive Sensor Technology (IST), Over-the-Air (OTA), Push-to-talk speaker, SE4710 imager
GPS
GPS/GLONASS/Galileo/BeiDou/QZSS receiver
Packaged Quantity
1
PDA Software Type
Google Mobile Services
Platform Supported
Android
Product Type
Data collection terminal
Service Activation
Yes
USB Host
Yes
Height
16.5 centimetre
Weight
236 gram
Width
7.63 centimetre
Depth
1.25 centimetre
Color Category
Black
Compliant Standards
2015/863, Bluetooth Class 2, IP65, IP68, MIL-STD 810H, REACH SVHC 1097/2006, RoHS, ROHS Directive 2011/65/EU
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 1 year
Limited Warranty
1 Year
