Tech specs
Brand
Lumens
Product Line
Lumens
Model
VC-TR40
Manufacturer
Lumina
Host Interface
USB 3.0
Network Interface
LAN
Protocols
HTTP, RTMP, RTMPS, RTSP, SRT
Connectivity Technology
Wired
Ports

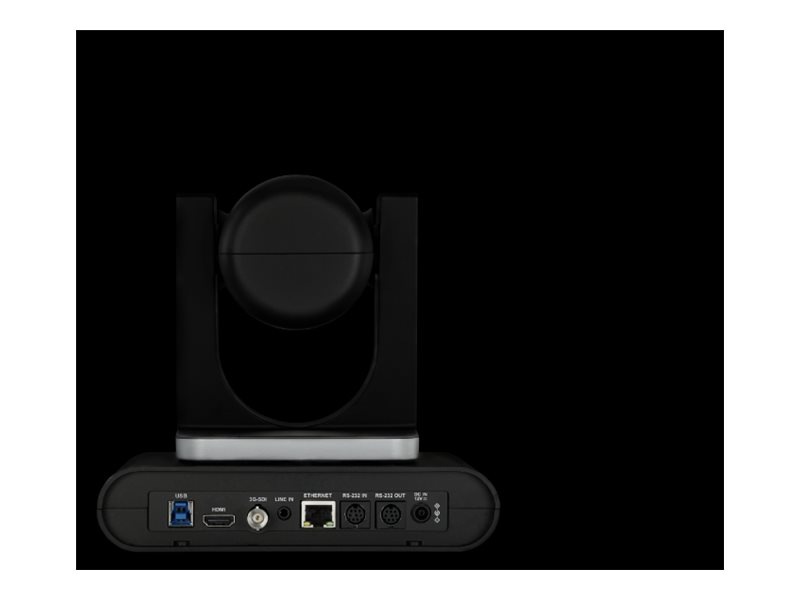

3G-SDI, Audio line in - 3.5 mm jack, HDMI output, LAN/power - RJ-45, Serial RS-232 input, Serial RS-232 output, USB 3.0 - 9 pin USB Type B
Image Sensor Size
1/2.8"
Image Sensor Type
CMOS
Touchscreen
No
Audio Support
Yes
Camera Mechanical Design
Pan / tilt / zoom
Control Interface
RS-232, VISCA
Digital Video Capture Resolution
1280 x 720, 1920 x 1080
Digital Zoom
12
Max Frame Rate
60 frames per second
Max Video Resolution
1920 x 1080
Video Modes
1080/25p, 1080/30p, 1080/50p, 1080/60p, 720/50p, 720/60p
Video Signals
3G-SDI, HDMI
Camera Type
Conference camera
Low Voltage Power
DC 12 V / PoE
Power Consumption Operational
10 watt
Power Device Type
Power adapter
Focus Modes
Automatic, Manual
Lens Aperture
F/1.6-2.8
Max Focal Length
94 millimetre
Min Focal Length
4.9 millimetre
Min Focus Distance
50 centimetre
Optical Zoom
20
Sensor Size (metric)
9.1 mm (1/2.8")
Total Pixels
2,000,000 pixels
Video Formats
H.264, MJPEG
Video Input
Color
Features
256 preset positions, 3D digital noise reduction (DNR), AI Tracking, Auto exposure control, Auto gain control, Auto tracking, Auto white balance, Auto-framing, Dual lens, Everywhere tracking mode, Face Recognition, Gesture Control, Image flip, Manual exposure, Manual gain control, Manual white balance, ONVIF support, Partition tracking mode, Pelco Protocol, PoE Support, Stage tracking mode, Upright mount, USB audio class (UAC 1.0), USB video class (UVC 1.1), Wide Dynamic Range (WDR)
Packaged Quantity
1
Height
13.8 centimetre
Weight
1.5 kilogram
Width
19 centimetre
Depth
18.5 centimetre
Color
Black
Color Category
Black
Compliant Standards
IEEE 802.3af, NDAA
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5 Year
