Tech specs
Brand
Extreme Networks
Product Line
Extreme Networks
Model

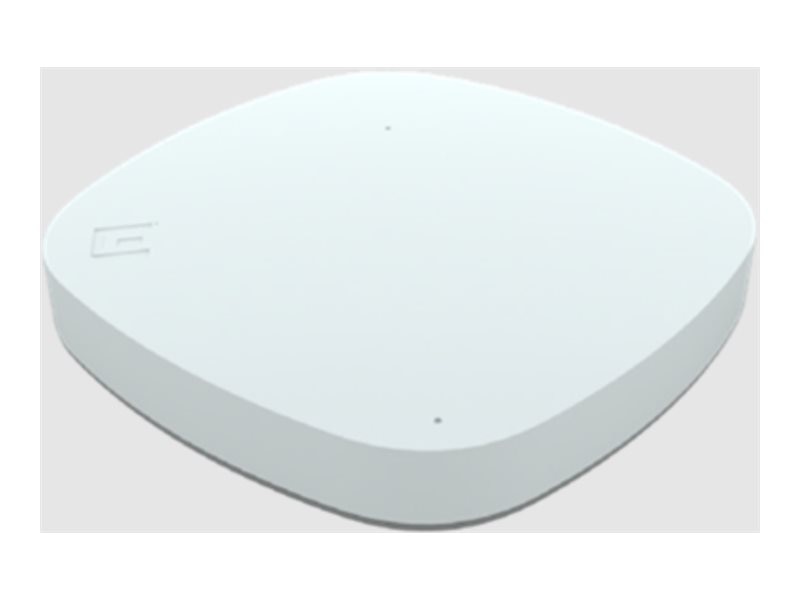

AP-5020
Manufacturer
EXTREME NETWORKS
Compliant Standards
Bluetooth 5.4, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, Wi-Fi CERTIFIED 7
Connectivity Technology
Wireless
Data Link Protocols
Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Thread, ZigBee
Data Transfer Rate
20 GBps
Features
4x4:4 MU-MIMO technology, Auto-sensing per device, Cellular Coexistence Filter (CCF), Energy-Efficient Ethernet (EEE), Firewall protection, High-Throughput (HT) support, Hit-less PoE Failover, Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Power Sourcing Equipment (PSE), Private Pre-Shared Key (PPSK), Quality of Service (QoS), Security slot (Kensington security lock compatible), SU-MIMO technology, Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Uplink/downlink MU-MIMO, Zero Trust Network Access (ZTNA)
Form Factor
Wall / ceiling mountable
Network Band
2.4 GHz, 5 GHz, 6 GHz
Power Over Ethernet (PoE)
PoE++
Product Type
Wireless access point
Spread Spectrum Method
DSSS, OFDM
Wireless LAN
802.11a/b/g/n/ac/ax/be, Bluetooth, Bluetooth 5.4 LE, Thread, ZigBee
Interface Provided
1 x 100M/1G/2.5/5 Gigabit Ethernet - RJ-45, 1 x 100M/1G/2.5/5/10 Gigabit Ethernet (PoE++) - RJ-45, 1 x USB 2.0 - Type A
Antenna Form Factor
Internal
Encryption
WPA3
Internet of Things (IoT) Compatible
Yes
Line Coding Format
1024 QAM, 256 QAM, 4096 QAM, DSSS, OFDM, OFDMA
Max Operating Temperature
50 degree Celsius
Min Operating Temperature
0 degree Celsius
Operating Humidity
0 - 95% (non-condensing)
Authentication Method
Radio Service Set ID (SSID)
Capacity
SSIDs per radio: 16, SSIDs total: 48, Total users: 1536, Users per radio: 512
Country
Worldwide
Device Type
External power adapter / power injector (not included)
IoT Communications Technology
Bluetooth 5.4 LE, Thread, Zigbee
Packaged Quantity
1
Ruggedized Design
Indoor
Service Activation
No
Network Device
Channel bandwidth: 320 mhz, Maximum data rate (2.4 GHz): 1.3 Gbps, Maximum data rate (5 GHz): 5.7 Gbps, Maximum data rate (6 GHz): 11.5 Gbps
Included Accessories
Wall and ceiling mounting bracket
Height
4.1 centimetre
Weight
1.62 kilogram
Width
25.8 centimetre
Depth
25.8 centimetre
Color Category
White
Compliant Standards
2014/35/EU, Annex II (EU) 2015/863, ANSI/UL 60950-1 Second Edition, AS/NZS 60950-1, AS/NZS CISPR 11, CAN/CSA C22.2 No. 60950-1 Second Edition 2014, China RoHS-2 SJ/T 11364-2014, CISPR 11, CISPR 32 Class B, CISPR 35, Directive 2014/30/EU, Directive 2014/53/EU, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 893, EN 303 687, EN 50385, EN 55011, EN 55032 Class B, EN 55035, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62368-1, FCC CFR 47 Part 15 Class B, FCC Part 1.1307, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, REACH 1907/2006/CE, RoHS 2011/65/EU, RSS-102 Issue 5, RSS-247, RSS-248, SCIP, Taiwan RoHS CNS 15663 (2013.7), UL 2043, UL/CUL 62368-1, WEEE 2012/19/EU
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - lifetime
Limited Warranty
Limited Lifetime
