Quick tech specs
- UL 60601-1 Listed Medical-Grade Isolation Transformers offer line isolation/continuous noise filtering
- Lowers cumulative leakage current of connected equipment to under 100 μA
- TAA Compliant
- 2 Year Tripp Lite Warranty
- Hospital-grade plug and receptacles
- Floating AC output prevents noise coupling
- 6 Hospital-Grade Outlets/ NEMA 5-15R hospital-grade output receptacles/ Faraday shield/ medical isolation transformer/ hospital isolation transformer/ 10ft power cord/ noise filtering
Know your gear

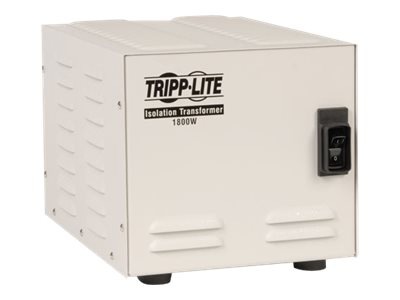

Isolator Series UL 60601-1 Listed Medical-Grade Isolation Transformers offer line isolation and continuous noise filtering. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL 60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protecting sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads. Reduces impact of utility- or lightning-related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. Reduces 6000V IEEE587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Includes six widely spaced NEMA 5-20R hospital-grade output receptacles, 10-foot power cord, hospital-grade input plug, circuit breaker overload protection, lighted power switch and rugged all-metal housing. Ships ready for placement in any industrial, medical, office or network environment.
