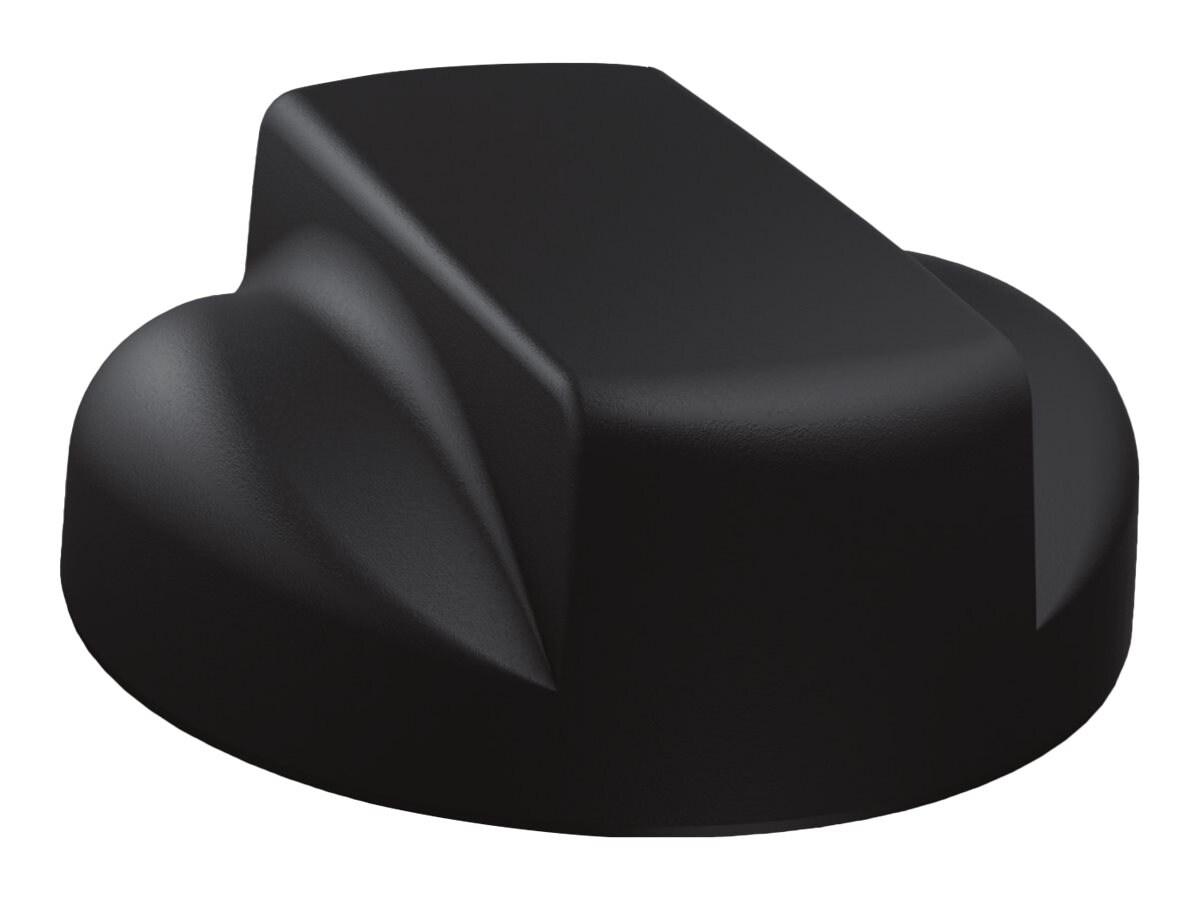

Cradlepoint 5-in 1 Dome - antenna
Mfg # CP-1011-1-PAN
CDW # 5279725
Quick tech specs
- in 1 Dome
- dome
- 2 dBi (for 2.4 GHz), 2.3 dBi (for 698
- 2.7 GHz), 2 dBi (for 4.9
- outdoor, panel mountable
- Antenna
- navigation, cellular, Wi-Fi
- 960 MHz), 5 dBi (for 1.71
- 6 GHz)
Know your gear
The 5-in-1 Dome antenna consists of two isolated high-performance antenna elements covering 698-2700MHz offering 2x2 MiMo 2G/3G/4G LTE frequencies as well as 2x2 MiMo antenna function for Wi-Fi and an active antenna for GPS/GNSS with 26dB gain LNA with high-quality filtering offering unparalleled positioning accuracy. The antenna does not require a metallic ground plane, and maintains a high level of performance even when mounted on a non-metallic surface.
This high-performance antenna offers multiple antenna functions while remaining discreet. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle's resale value.
