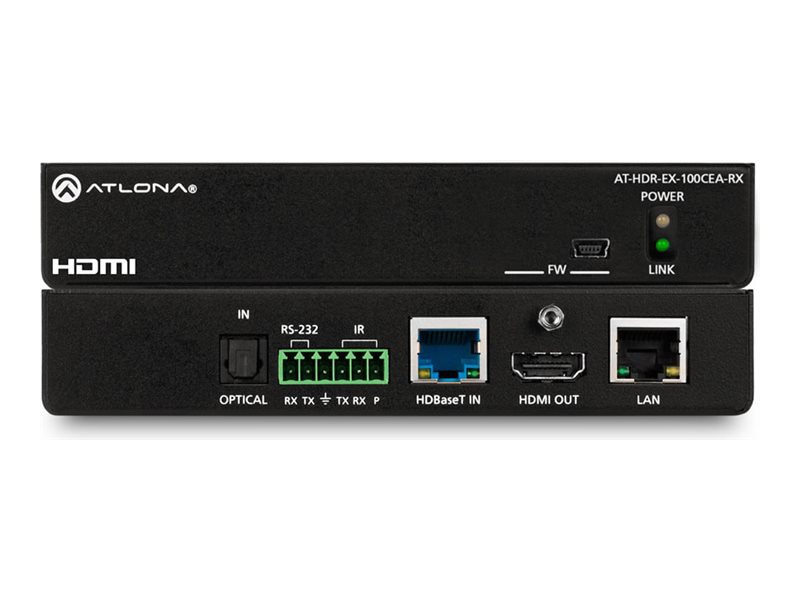

Tech specs
Brand
Atlona
Product Line
Atlona
Manufacturer
Atlona
Compliant Standards
HDCP 2.2
Connectivity Technology
Wired
Data Link Protocols
HDBaseT, HDMI, RS-232
Extender Type
Receiver
Features
12-bit Deep Color support, 4:2:0 chroma subsampling support, 4:4:2 chroma subsampling support, 4:4:4 chroma subsampling support, 4K resolution support, 8-bit Deep Color support, CEC support, Dolby Atmos support, Dolby Digital Plus support, Dolby Digital support, Dolby TrueHD support, Dolby Vision HDR support, DTS Digital Surround support, DTS:X support, DTS-HD Master Audio support, Firmware upgradable, HDR 4K60 4:4:4 compatible, HDR support, HDR10 support, Hybrid Log-Gamma (HLG) support
Form Factor
External
Max Transfer Distance
100 metre
Product Type
Video/audio/infrared/serial extender
Status Indicators
Link, Power
Transmission Medium
CAT 5e/6/6a
Interface Provided
1 x firmware upgrade - mini-USB Type A, 1 x HDBaseT (input) - RJ-45, 1 x HDMI output - 19 pin HDMI Type A female, 1 x IR - terminal block, 1 x RS-232/IR (control) - 6 pin terminal block, 1 x TOSLINK (input)
KVP Max Resolution
4096 x 2160
Power Consumption Operational
10.4 watt
KVM V-Sync Rate At Max Resolution
60 Hz
Max Operating Temperature
50 degree Celsius
Min Operating Temperature
0 degree Celsius
Operating Humidity
20 - 90% RH (non-condensing)
Device Type
External power adapter
Mounting Kit
Included
Packaged Quantity
1
Height
2.6 centimetre
Weight
396 gram
Width
14.6 centimetre
Depth
9.7 centimetre
Color Category
Black
Compliant Standards
China RoHS, FCC, NDAA Section 889
ENERGY STAR Certified
No
EPEAT Compliant
No
TAA Compliant
Yes
TCO Certified
No
Service & Support Details
Limited warranty - 10 years
Limited Warranty
10 Year
