Tech specs
Brand
Atlona
Product Line
Atlona Omega
Model

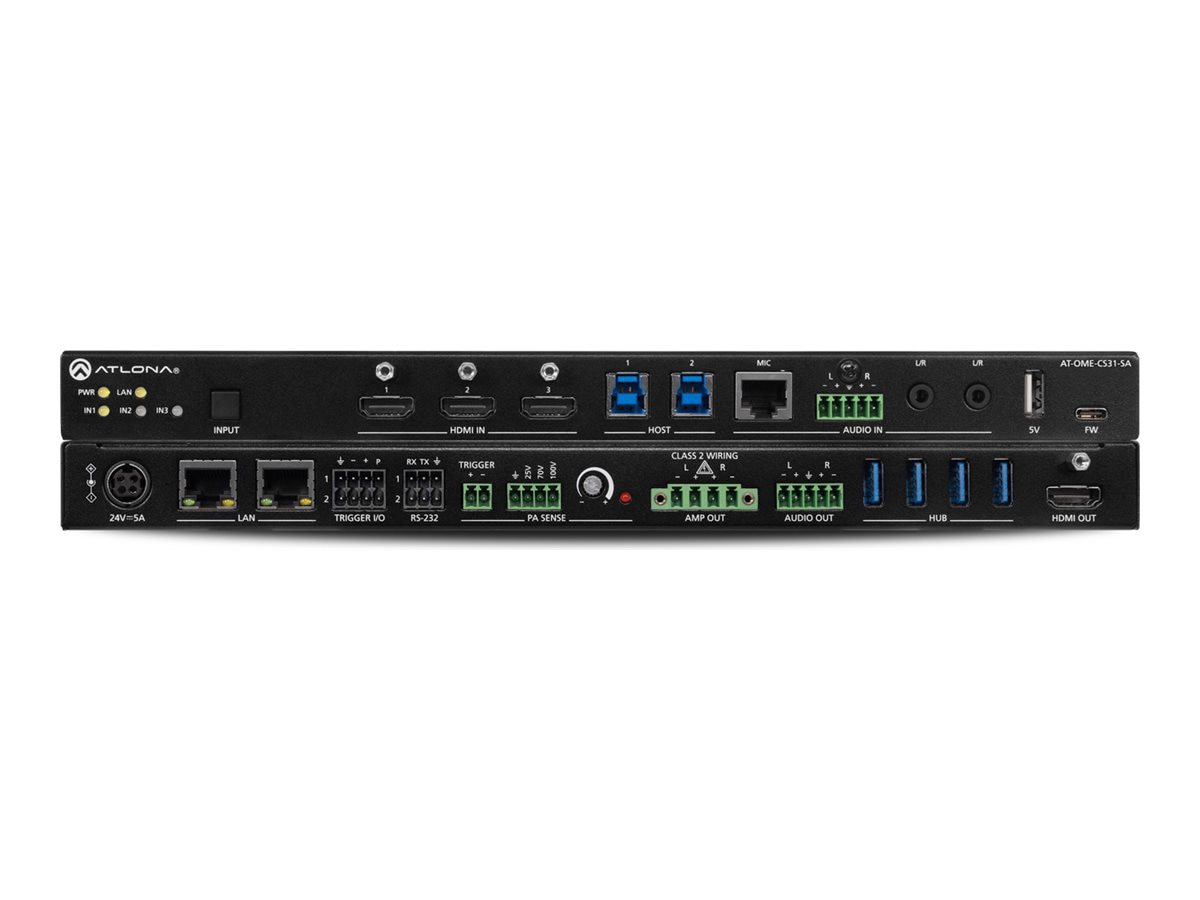

OME-CS31-SA
Manufacturer
Atlona
Frequency
50/60 hertz
Low Voltage Power
DC 24 V
Required Voltage
AC 100-240 volt
Max Operating Temperature
50 degree Celsius
Max Power Consumption
87.4 watt
Min Operating Temperature
0 degree Celsius
Operating Humidity
20 - 90% RH (non-condensing)
Features
24-bit audio resolution, 4K60 4:4:4 signal support, Auto-switching capability, Built-in 2 x 25 watts audio amplifier, Built-in ducker, Dolby Vision support, EDID support, HDCP 2.2 compliant, HDR10 Support, HLG support, LPCM support, Under-the-table mountable
Kit Content
(1) x audio/video switcher, (1) x mounting hardware, (1) x power cable, (1) x power supply, (4) x rubber foot
Packaged Quantity
1
Product Type
Distribution amplifier / switcher
Terminals
(1) x AMP output - 4-pin terminal block, (1) x audio input - 5-pin terminal block, (1) x audio output - 5-pin terminal block, (1) x balanced audio input - mini-phone stereo 3.5 mm, (1) x HDMI output - 19 pin HDMI Type A, (1) x microphone - RJ-45, (1) x service port - USB-C, (1) x trigger - 2-pin terminal block, (2) x balanced audio output - mini-phone stereo 3.5 mm, (2) x Digital I/O control - 4-pin terminal block, (2) x network - RJ-45, (2) x RS-232 - 3-pin terminal block - bi-directional, (2) x USB Host - 4 pin USB type B, (3) x HDMI input - 19 pin HDMI Type A, (4) x USB 3.0 - 4 pin USB type A
Height
2.5 centimetre
Weight
1.7 kilogram
Width
30 centimetre
Depth
21 centimetre
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Manufacturer Limited Warranty
3 years
