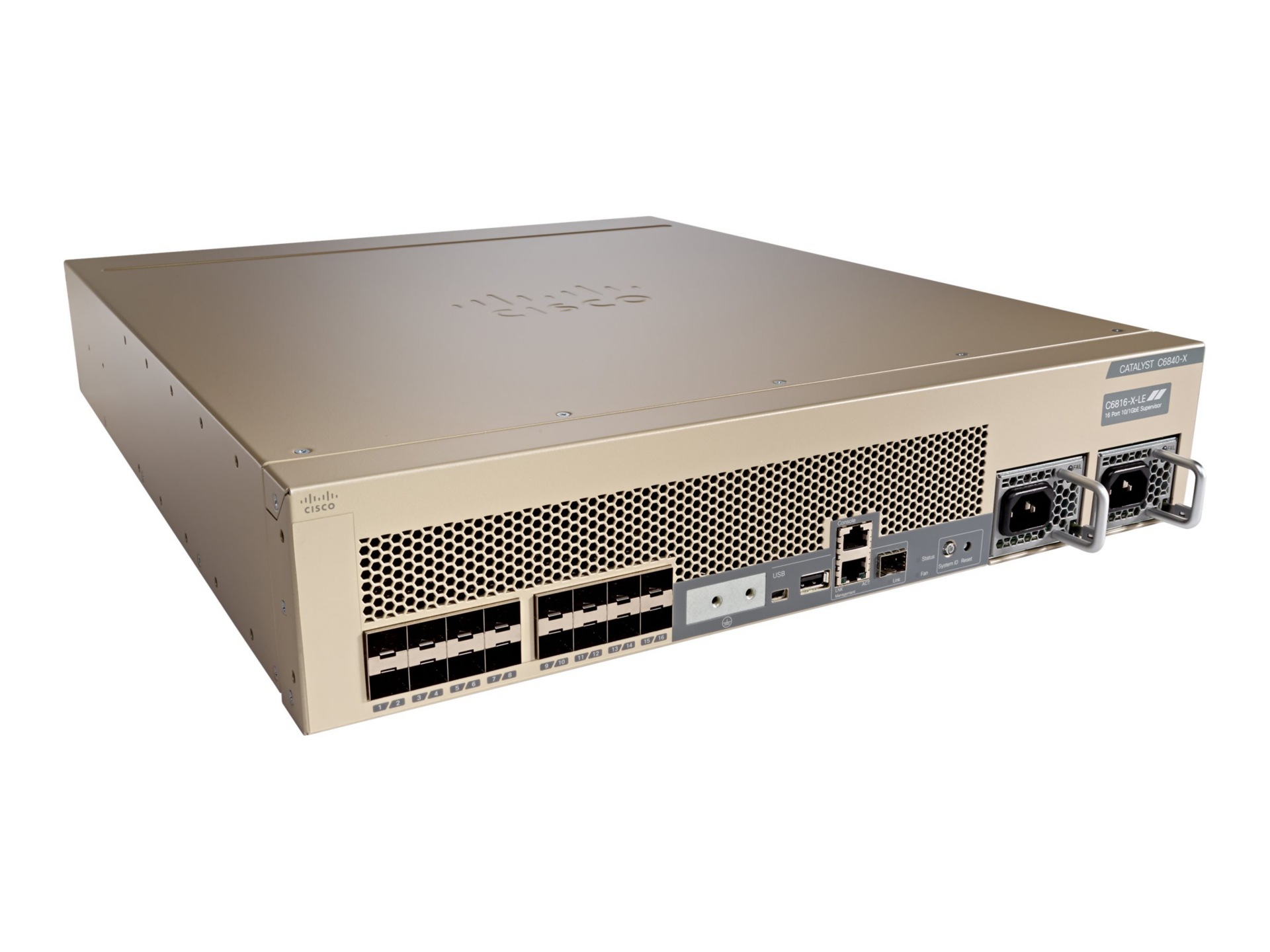

Tech specs
Brand
Cisco
Product Line
Cisco Catalyst
Model
6816-X Chassis (Standard Tables)
Manufacturer
Cisco Systems
RAM Installed
4 GB
Compliant Standards
IEEE 802.1ae, IEEE 802.1x
Features
802.1x authentication, Access Control List (ACL) support, Control plane protection (CoPP), Deficit Weighted Round Robin (DWRR), DiffServ Code Point (DSCP) support, DoS attack prevention, Flexible NetFlow (FNF), IGMP filtering, IGMP snooping, IPv4 support, IPv6 support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), NAT support, NetFlow, PIM snooping, Port Security, Remote Switch Port Analyzer (RSPAN), Reset button, Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Unicast Reverse Path Forwarding (URPF), Virtual Private LAN Service (VPLS), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support, Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)
Desktop, Rack-mountable
Jumbo Frame Support
9216 bytes
MAC Address Table Size
128K entries
Manageable
Yes
Ports
16
Product Type
Switch
Remote Management
RMON, SMON
Routing Protocol
IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MPLS, MSDP, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6
Subcategory
Network hubs and switches
Switching Type
10 Gigabit Ethernet
Interface Provided
1 x console (mini-USB) Type B, 1 x management RJ-45, 1 x management SFP, 1 x serial (console) RJ-45, 1 x USB Type A, 16 x 10GBase-X SFP+
Port Quantity
16
Port Type
1 Gigabit SFP/ 10 Gigabit SFP+
Hot-Plug
Hot-plug
Power Supplies Supported
2
Redundant Power Supply
Optional
Redundant Power Supply Supported
1+1 (with optional power supply)
Humidity Range Storage
5 - 90% (non-condensing)
Max Operating Temperature
40 degree Celsius
Max Storage Temperature
65 degree Celsius
Min Operating Temperature
0 degree Celsius
Min Storage Temperature
-20 degree Celsius
Operating Humidity
5 - 90% (non-condensing)
Capacity
ACL entries: 64000, Domains: 16000, IPv4 routes (Multicast): 128000, IPv4 routes: 256000, IPv6 routes (Multicast): 64, IPv6 routes: 128000, NetFlow entries: 512000, Virtual interfaces (VLANs): 4094
Device Type
Internal power supply (not installed)
Packaged Quantity
1
Performance
Bandwidth (full duplex): 80 Gbps, IPv4 routing: 60 Mpps, IPv6 routing: 30 Mpps
Height
8.89 centimetre
Height (Rack Units)
2
Weight
24.04 kilogram
Width
44.07 centimetre
Depth
55.38 centimetre
Color Category
Gray
Compliant Standards
AS/NZS 3548 Class A, AS/NZS 60950, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-6-1, EN50082-1, EN55024, ETS 300 386, ETSI 300 019, FCC Part 15 A, GR-1089-CORE, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI Class A
Service & Support Details
Limited warranty - advance parts replacement - 1 year - response time: 10 days
Limited Warranty
1-year warranty
